100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool

100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool
100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool 100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool 100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool

Large Image :  100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool

Product Details:
Place of Origin: ningbo
Brand Name: lingkai
Certification: ISO
Model Number: 100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets /month
Detailed Product Description
Model: 16013A Crimping Force: 100T
Crimping Range: 14-76mm Crimping Type: Hexagon Crimping
Stoke: 24mm Weight: 30 Kgs
High Light:

split hydraulic crimping tool

,

100t hydraulic crimping tool

,

split hydraulic crimping pliers

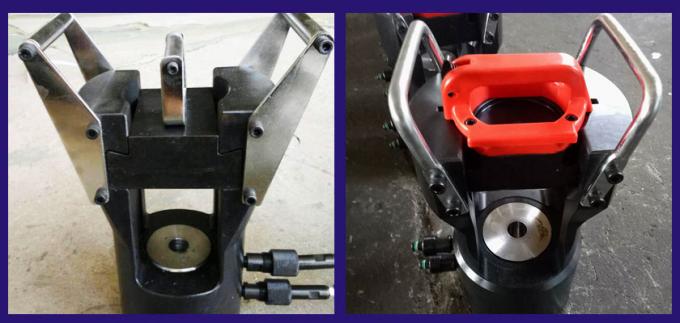

YJD-1000 100T HEAVY DUTY CRIMP CABLE PRESS-FIT TOOL SPLIT-TYPE HYDRAULIC CRIMPING PLIERS

Product Description

Split hydraulic crimping head can work with hydraulic pump

It is suit for crimping big size of lugs

It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable



Feature

1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.

2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.

3. The oil pipe coipler fitted with PT 3/8'' thread.

4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.



TECHNICAL DATA

Item number 16103 16103A 16104 16105 16106
Model YJD-600 YJD-1000 YJD-1250 YJD-2000 YJD-3000

Crimping

force

60T 100T 125T 200T 300T

Crimping

range

14-55mm 14-76mm 14-76mm 14-90mm 14-100mm
type hexagon crimping hexagon crimping
Stroke 24mm 24mm 35mm 35mm
Heigth approx.370mm approx.480mm

Weight

(KG)

approx.N.W20KG

G.W30KG

approx.N.W30KG

G.W40KG

approx.N.W50KG

G.W60KG

approx.N.W85KG

G.W95KG

approx.N.W120KG

G.W130KG

Package wooden case wooden case





100t Crimp Cable Press Fit Tool Split Hydraulic Crimping Tool 0
