Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed

Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed
Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed

Large Image :  Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJM1Q
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 3-5WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100SETS/DAY
Detailed Product Description
Type: Gas Powered Winch Capacity: 1ton
Series: Cable Pulling Machine Engine: Honda.yamaha Gasoline
Slow: 10m/mmin Fast: 15m/min
High Light:

gasoline powered winch

,

portable capstan winch

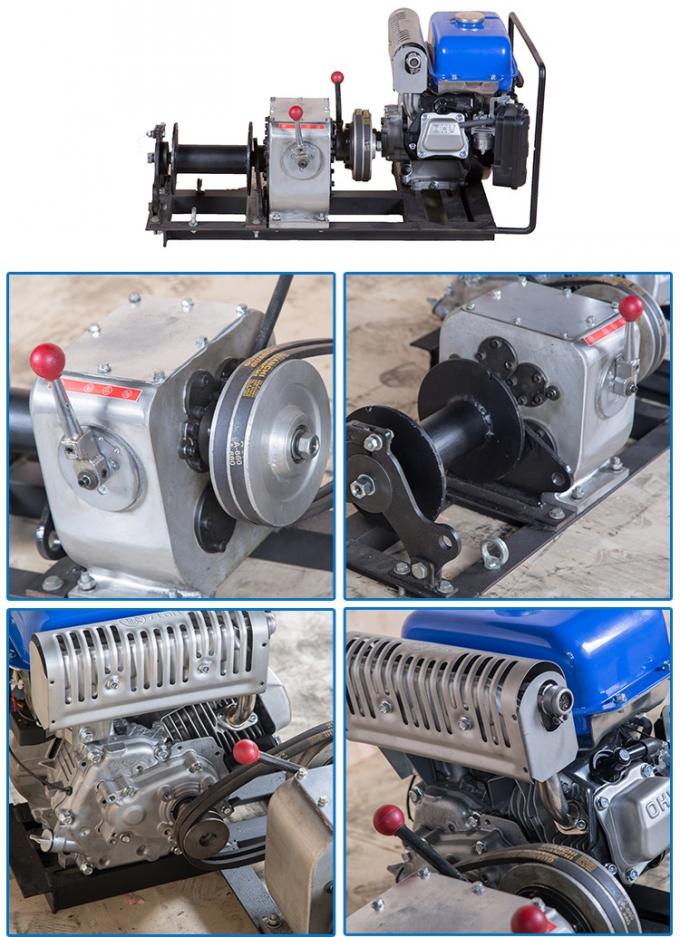

Gas Powered Winch 1 Ton Portable Cable Pulling Machine with Honda / Yamaha Gasoline Engine



Small Portable Winch With HONDA Petrol Engine Powered Winch

Application

Small Winch Yamaha With Petrol Engine Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q HODNA GX160 5.5HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
Electric motor (Slow) 10.0 0.8 48
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!

Gas Powered Winch Cable Winch Puller 1 Ton Capacity Portable Type 15m / Min Fast Speed 0
